Precision CNC Turning of a Blind Brass Insert

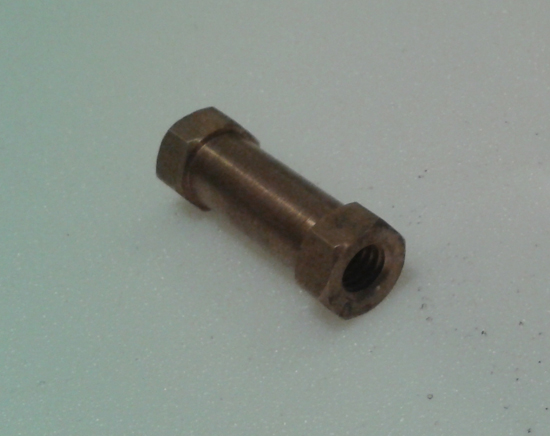

The blind brass insert shown here is an example of the high quality, fast turnaround work we do every day here at Voskuil Machine Co. Working with the customer specifications, we precision turned the components and then machined the strong and reliable internal threads to provide a long term tight fit in the intended application. A final deburring step removed all fines and any other trace contaminants that could potentially compromise installation or fit. Constructed from ½" hex brass rod, the blind threaded insert measures 1.50" in length. Dimensional and visual inspections confirmed that we satisfied the customer’s ± 0.010" tolerance requirement.

To learn more about this project or our fast turnaround precision CNC turning services, contact us today.

Precision CNC Turning of a Blind Brass Insert Highlights

Capabilities Applied/Processes
CNC Precision Turning

Overall Part Dimensions
Hex: 0.50"
Length: 1.50"
Tightest Tolerances
± 0.010"
Material Used
½ Hex Brass
Material Finish
In process testing/inspection performed
Dimensional Inspection, Visual Inspection
Standards Met
Customer Specifications, 2D CAD Drawing
Product Name
Blind Brass Insert
