Precision Turning of a Hydraulic Tank Fitting

Precision Turning of a Hydraulic Tank Fitting
Precision Turning of a Hydraulic Tank Fitting

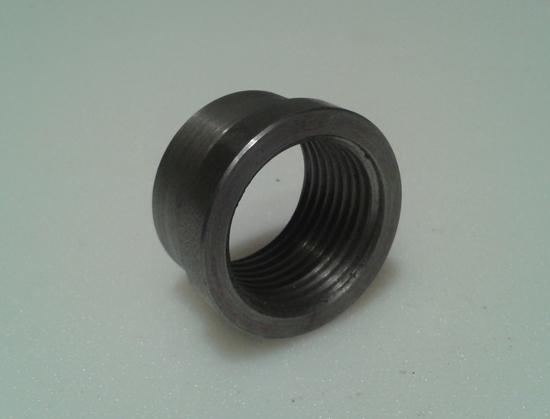

As specialists in tight tolerance turning of small components, Voskuil Machine Co. was contracted to manufacture the steel fill boss shown here. Constructed from steel and measuring 0.75" in length, we turned the outside diameter to 1-3/8" and then machined the internal threads. Secondary operations consisted of deburring, and then applying the painted finish. Both visual and dimensional inspections verified that we satisfied the requirements of the customer specifications.

This customer knew they could rely on us to deliver this component fully finished and within their allotted timeframe. If you would like to learn more about Voskuil Machine Co., the services we provide and the products we produce, contact us today.

Precision Turning of a Hydraulic Tank Fitting Highlights

Capabilities Applied/Processes
CNC Precision Turning

Overall Part Dimensions
Length: 0.75"
Outside Diameter: 1-3/8"
Material Used
In process testing/inspection performed
Dimensional Inspection, Visual Inspection
Standards Met
Customer Specifications, 2D CAD Drawing
Product Name
Fill Boss
